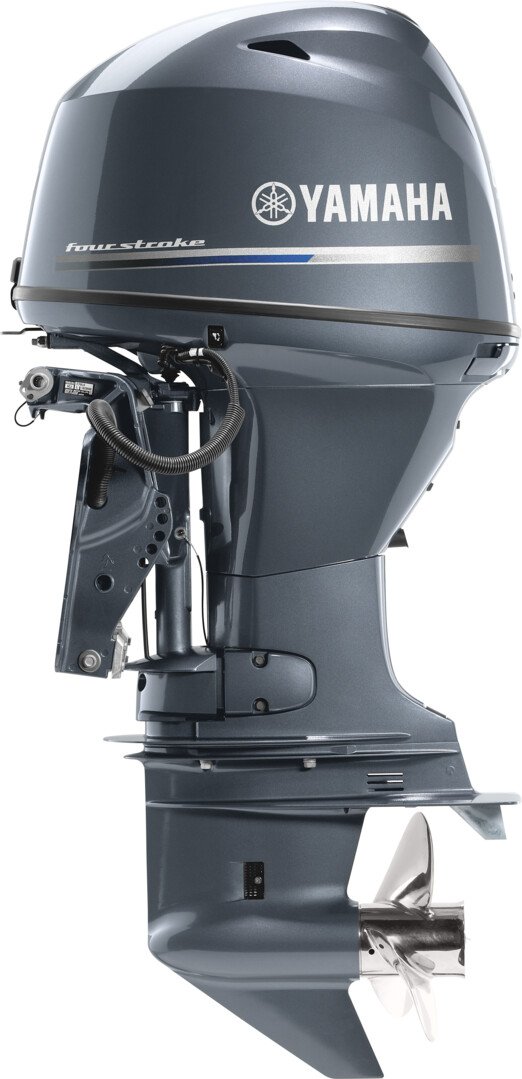

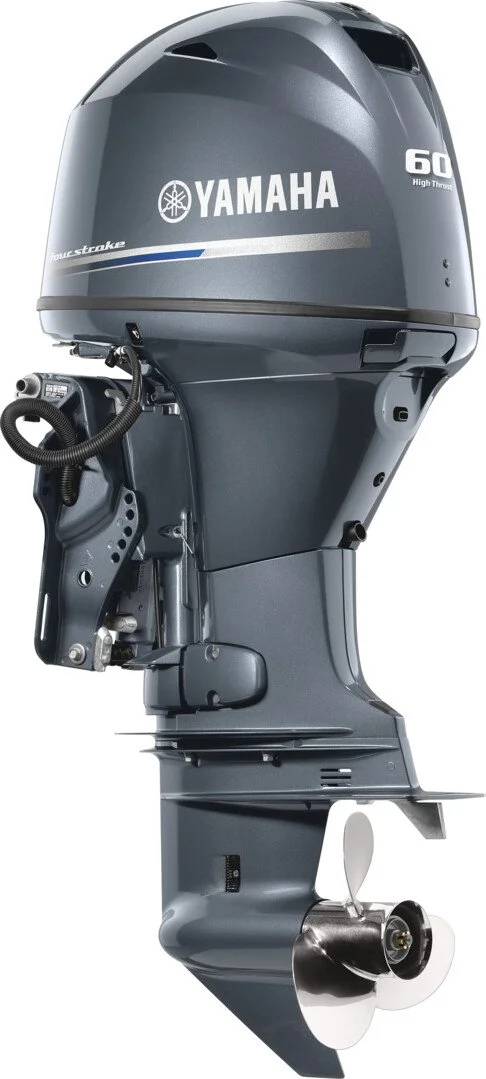

T60
The high-thrust T60 has been specifically designed to provide the extra grunt when you need to move big loads such as sailboats and heavy pontoons.
Utilising a dual-thrust design the T60 produces twice the thrust of comparable two-strokes within the 2,000 to 3,000 RPM range, while delivering Yamaha’s the legendary reliability, durability, and efficiency that Yamaha Outboards are renown for.
The key mechanical difference between the T60 and the standard four-stroke platform is the use of a higher 2.33:1 gear ratio. This allows the T60 to spin a much larger propeller, generating more power to the water and resulting in less slippage.
The T60 can be fitted with Yamaha’s patented Dual Thrust propellers. These propellers provide maximum traction in both forward and reverse, by re-routing the exhaust when in reverse.
Technical Specification

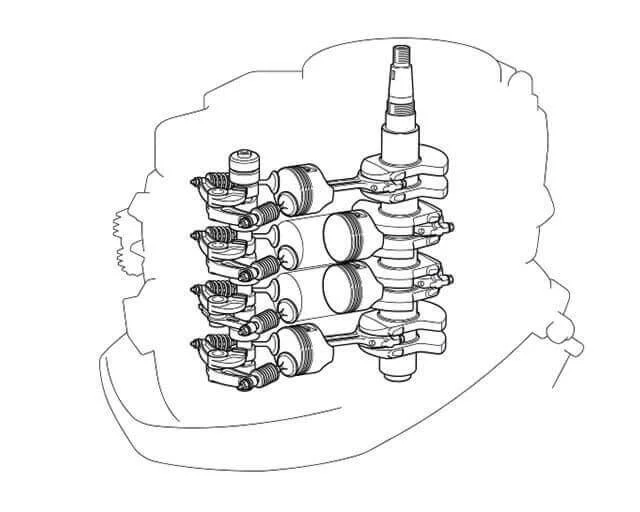

966cc Four-Cylinder Engine The large cubic-capacity, eight-valve, four-cylinder, single overhead camshaft, long-stroke, marine engine delivers impressive torque from low-to-mid speed ranges, resulting in a quick response and ability to push big loads. Large engine mounts reduce noise and minimise vibrations, for a more enjoyable boating experience.

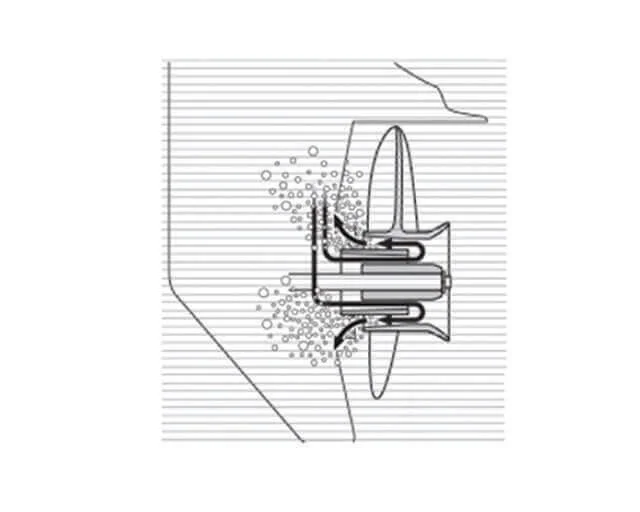

Dual Thrust Propeller The T60 can be fitted with Yamaha’s large-diameter, low pitch, Dual Thrust propellers. These propellers have been designed to give instant power in both forward and reverse, by redirecting exhaust gases way from the propeller, reducing reverse ventilation and generating more power to the water. This increases forward thrust by up to 60% and reverse thrust by up to 70%.

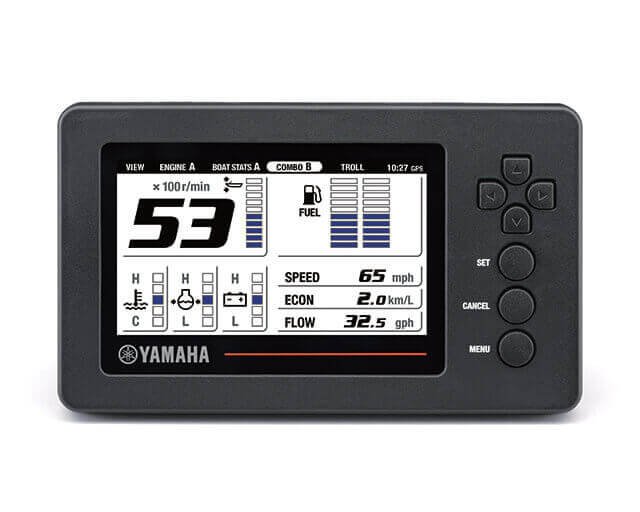

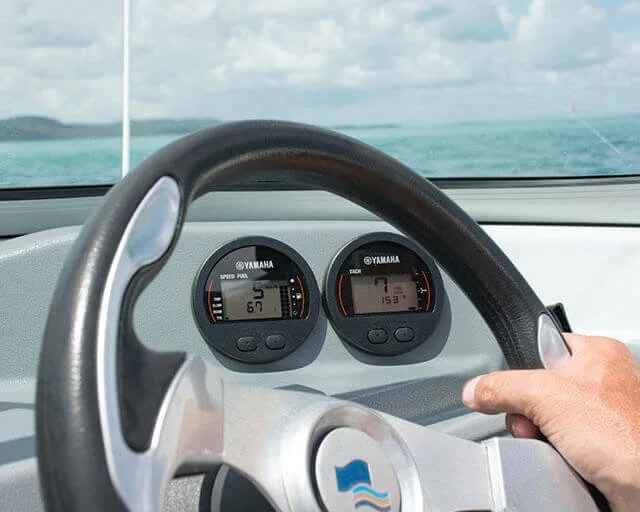

Digital Network Gauges This engine is compatible with Yamaha's Digital Network Gauges (Command Link), giving you the information needed to maximise engine performance and efficiency, including a Tachometer, Hours Run, Trim Angle, Oil Pressure, Warning lamps, Variable Trolling Control, Speed/Fuel and Fuel Economy.

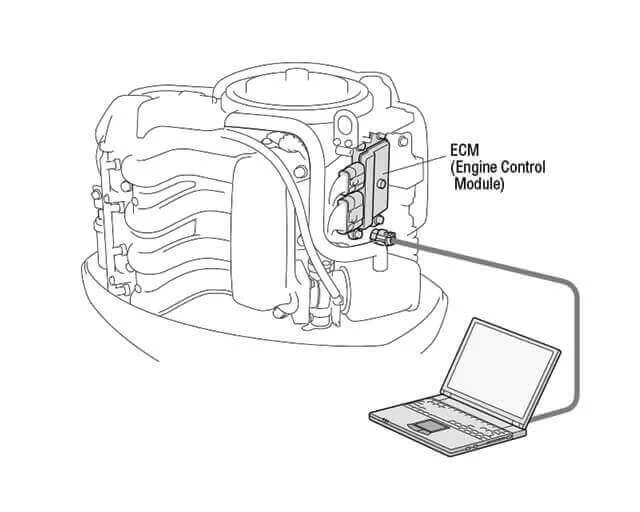

ECM Micro-Computer Control This engine is controlled by an advanced microprocessor Engine Control Module (ECM), which receives inputs from six major sensors located throughout the engine. This information is used to ensure the engine runs at peak performance, by delivering the right fuel/air mixture to each combustion chamber.

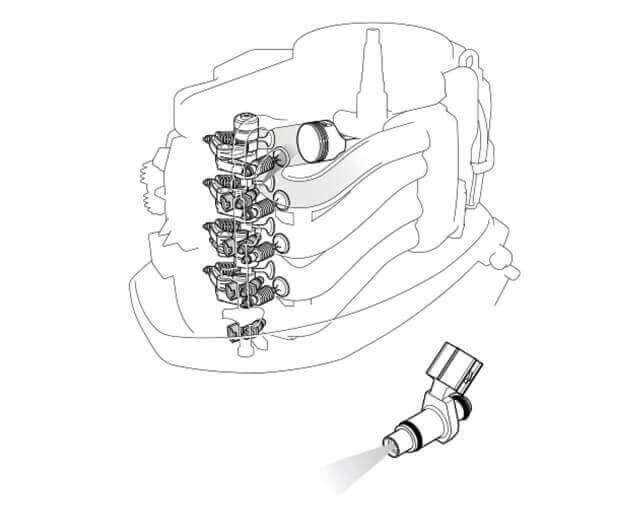

Electronic Fuel Injection The Multi-Point Electronic Fuel Injection (EFI) system, in conjunction with the Engine Control Module (ECM), injects the right amount of fuel into the combustion chamber at the optimum timing. This results in ‘first-time, every-time’ hot and cold starting, improved fuel efficiency and excellent throttle response.

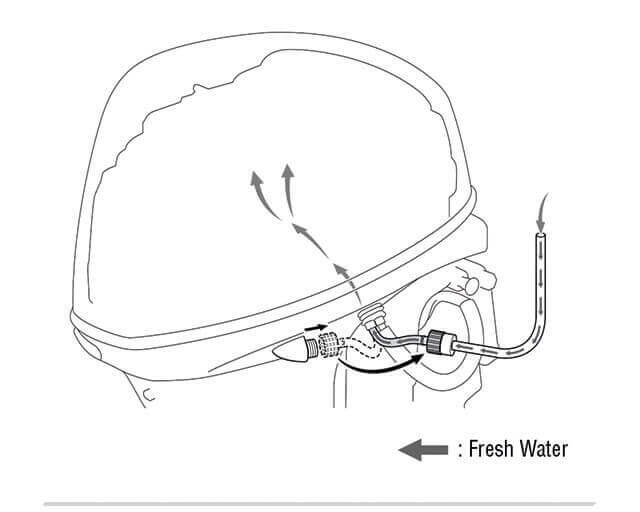

Fresh Water Flushing System Simply connect a hose to the easy access connector to flush salt and dirt from the outboard without having to run the engine. Flushing the engine after each usage reduces corrosion and extends the engines life.

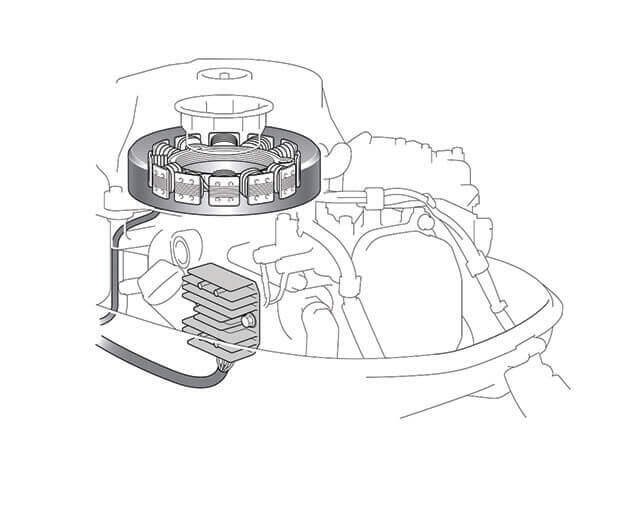

High-Output Alternator A 12-Volt 16-Amp high-output alternator ensures that power is always available to start the engine, even after long periods of idling or running at low revs. This not only provides extra starting power, but delivers sufficient power to run the wide array of on-board electronic devices used in modern boating.

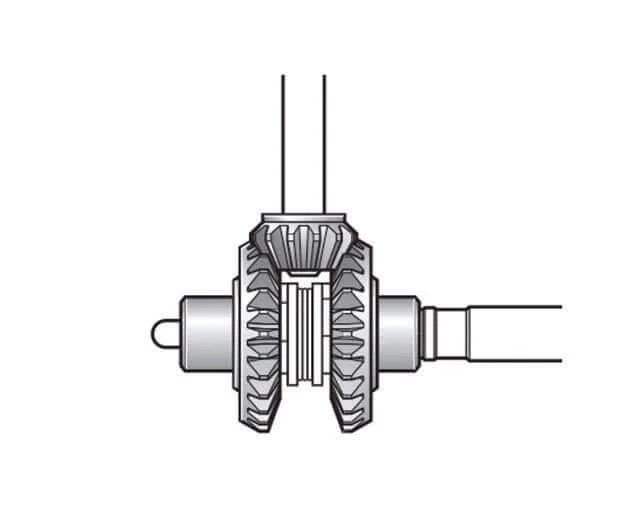

High Gear Ratio All Yamaha high-thrust outboard models utilise a lower-mounted gear case design, featuring a high gear ratio. The gears are specially hardened to withstand the toughest working conditions - for long-term durability.

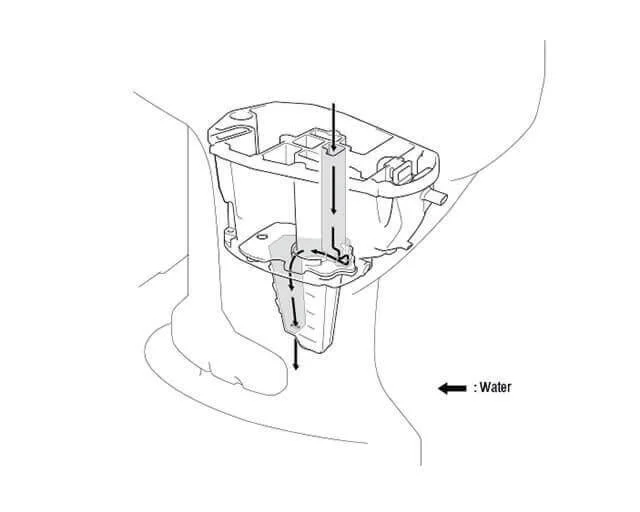

Labyrinth Exhaust System Yamaha’s proven labyrinth exhaust system reduces engine noise at low RPM and idle. A water sealed outer wall around the exhaust muffler effectively reduces exhaust tone for whisper quiet operation and enhances cooling which protects the exhaust system against corrosion.

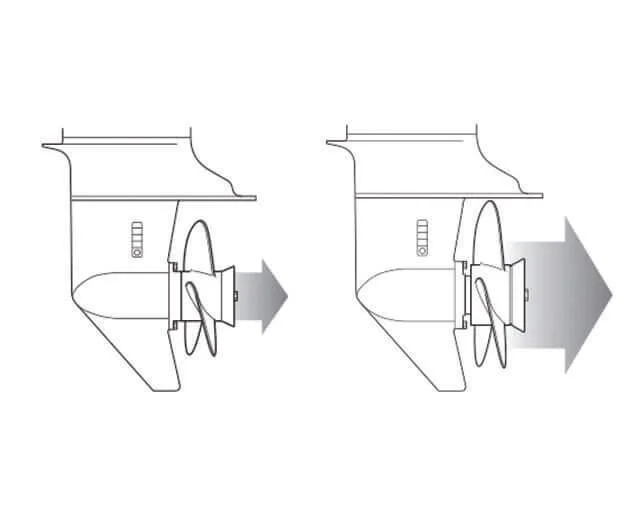

Large Diameter Propeller A higher gear ratio of 2.33:1 allows the FT25 to operate using a large diameter propeller. This improved capacity enables the outboard to push greater volumes of water and achieve increased thrust.
Mechanical Steering Control The FT60 is available as a mechanical forward-control option, suitable for center console and side console boats.

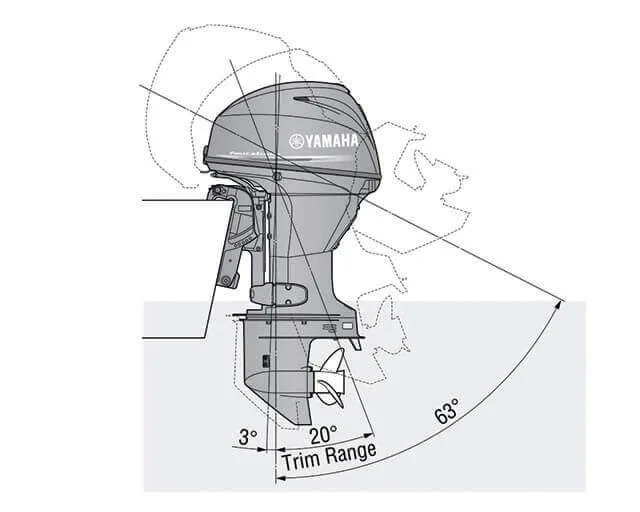

Power Trim and Tilt Yamaha’s push-button trim control makes engine trim and tilt adjustments quick, smooth and easy, across a wide trim range. The negative trim settings allow for improved acceleration and the ability to bring the boat onto the plane more quickly.

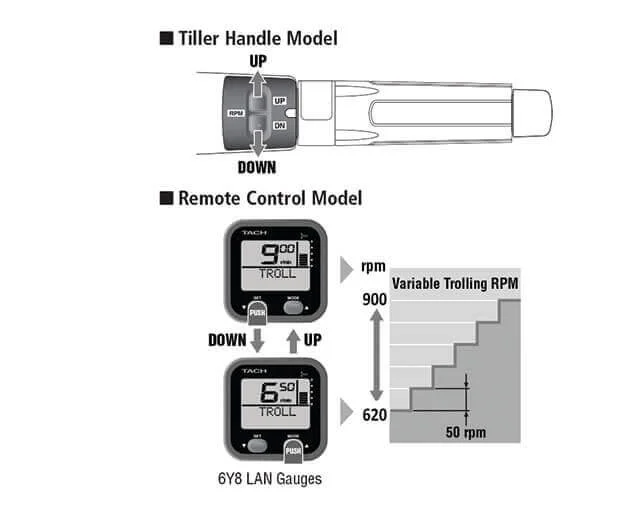

Variable Trolling Control Yamaha’s variable trolling control allows you to precisely adjust the engine’s idling speed from 650 to 900 RPM in 50 RPM increments. The ability to finely tune the trolling speed allows fisherman to perfect their lure presentation when chasing different species of fish.

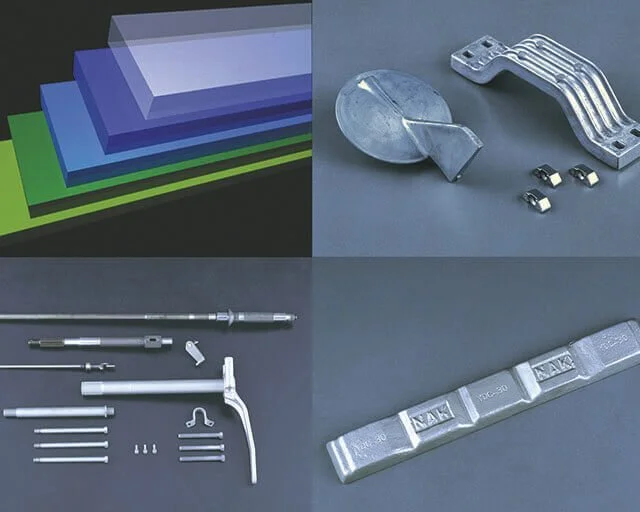

5 Stage Anti-Corrosion Paint System Yamaha engines are known for their durability and high re-sale value. Part of this lies in the anti-corrosion protection. A unique YDC-30 aluminium alloy and 5-stage exterior paint coating process protects the engine's exterior parts, while high-quality, marine-grade, stainless steel componentry is used throughout, for long-lasting protection.

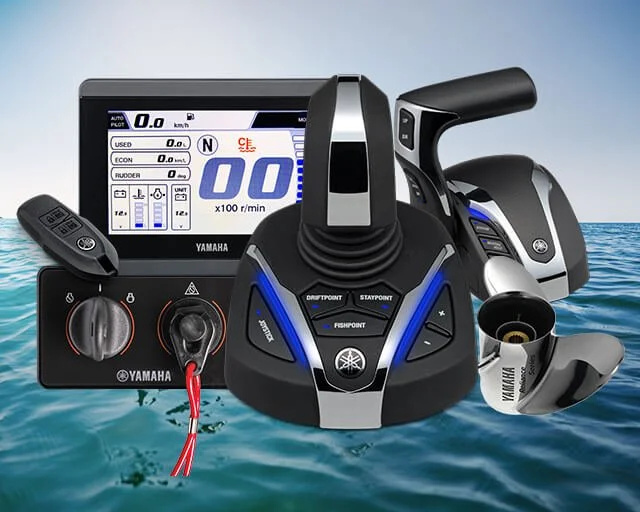

Yamaha Outboard Tech Yamaha offers a range of rigging options to suit every boat. Check out the full suite of controls, gauges, switches, props and other technologies, plus outboard performance data.
